不銹鋼球直徑/Diameter of stainless bal

Both low-temperature condensed water and air will run into the valve cavity when the equipment is just started, consequently, automatic air discharge equipment will be open and discharge the air, enabling low-temperature condensed water coming into the valve cavity smoothly, at the moment, the level of low-temperature condensed water inside will rise swiftly, which bring about elevation of ball floating and open of valve hole, for the purpose of discharging the condensed water; the steam earlier will enter into heating equipment soon, which have equipment heating and promoting temperature in a fast manner, the automatic air discharge equipment will start inflating as the steam or rather high-temperature condensed water enter into valve cavity, otherwise, trap should operate normally as soon as the automatic air discharge equipment is closed. At the moment, the ball floating inside valve cavity will up and down along with the level of the condensed water, and with capability of continuously discharging condensed water. Due to the fact that the valve seat hole of free-ball float trap is always below the level of condensed water, ultimately formed water seal that separated water and steam in a natural way, therefore, there should be in no circumstance of leakage of steam during operation of the equipment. The valve will bear the minimum work pressure of 0.01 Mpa, in addition, it will keep operating continuously without influence of temperature and fluctuation of work pressure within the scope between 0.01Mpa and maximum work pressure. In consideration of the minimum super cooling degree of the valve is about 0℃, coupled with the fact that the valve is capable of discharging condensed water automatically and continuously, therefore, heating equipment will remain absence of accumulated water, which could have heating equipment reach optimum efficiency in heat exchange. All in all, the valve is one of the best traps for heating equipment applicable to production.

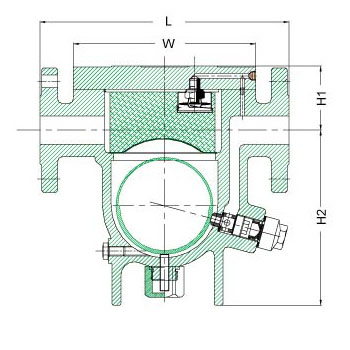

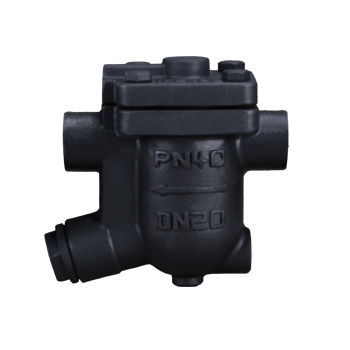

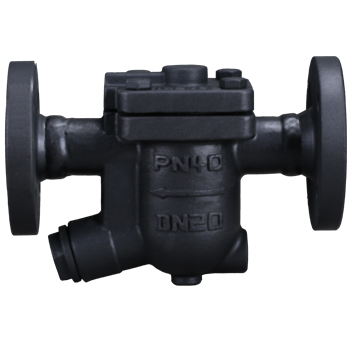

自由浮球式疏水閥 FREE-BALL FLOAT TRAP

技術參數/Technique parameter

排水量/Capacity

注解：
1、選型時請提供工作壓力、工作壓差、凝結水發生量、工作溫度、連接方式及標準。
2、凝結水負荷的安全系數一般為2～3倍。
3、正確安裝、定期保養清除閥內污物，保證疏水閥正常工作和延長使用壽命。
4、裝有自動排氣閥的疏水閥，其凝結水量能夠額外增加300Kg/h。
Note
1. Please provide operating pressure and operating pressure difference, generating quantity of condensation water, operating temperature, connecting mode and standards in selecting product models.
2.The load of condensation water’s safety coefficient reaches 2 to 3 times in general.
3. Please make sure the drain valve is installed properly, maintained regularly, cleaned up and operates under the normal condition, so as to extend its service life.
4.The steam trap, if equipped with automatic exhaust valve, can have the quantity of condensate water increased by 300Kg/h
